Setting up data plane

The data plane is represented by a router, as most of the routers are closed source we cannot use them out of the box. Hence we use OpenWRT which a open source linux based firmware for unmanageable routers. Prebuilt images of openwrt with openflow 1.0 for LinkSys WRT54GL,TP-LINK TL- WR1043ND (v1.7),TP-LINK TL- WR1043ND (v1.8) are available here.  For TP-link TL-WR841N, pre built images with OpenFlow 1.0 are V9, V10, V11. Otherwise you can flash custom Chaos Calmer 15.05 image and then install OpenFlow 1.0 or OpenFlow1.3 by simple command

  opkg install   <package name>

If your router is not listed you’ll have to build image from source as per instructions here

Its highly recommend to use TP-link TL-WR841N v9, instructions given in this article are intended for WR841 v9 specifically.

WARNING: Flashing an unofficial firmware voids your warranty,and could turn your router into useless ‘brick’. Perform the operation at your own risk.

1.Connect your router to computer & point your browser to 192.168.0.1 ; login with credentials (Username:admin,Password:admin)

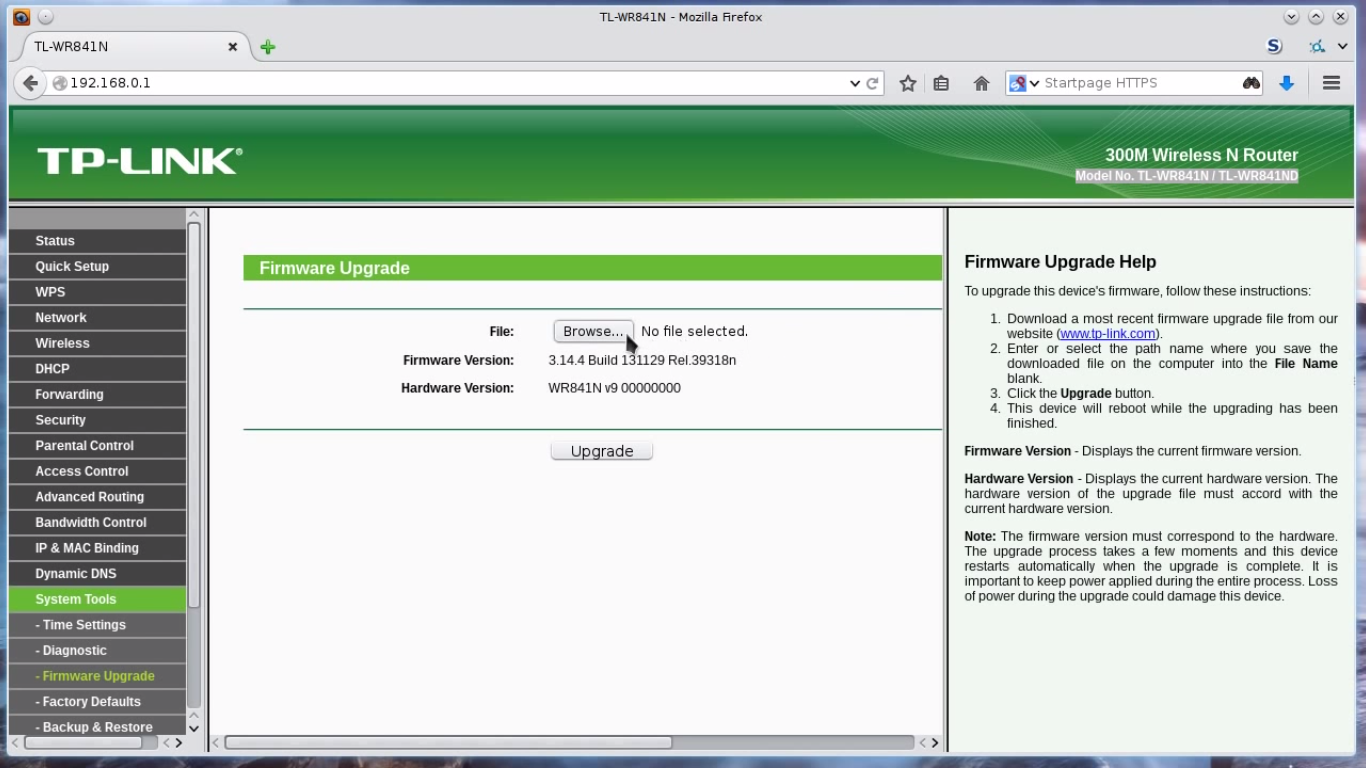

2.In left pane navigate to system tools –> Firmware upgrade, Check if the Hardware version is correct. Browse to the downloaded image final_image.bin & upgrade.

41



3.Refresh the page after process is completed,the tplink interface will vanish. Reboot router.

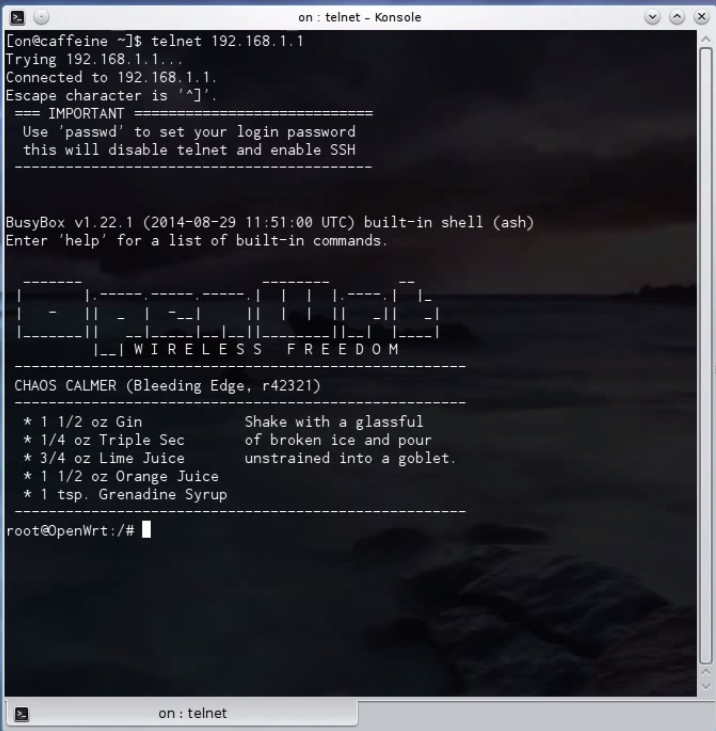

4. Through commnandline/terminal run

telnet 192.168.1.1

51

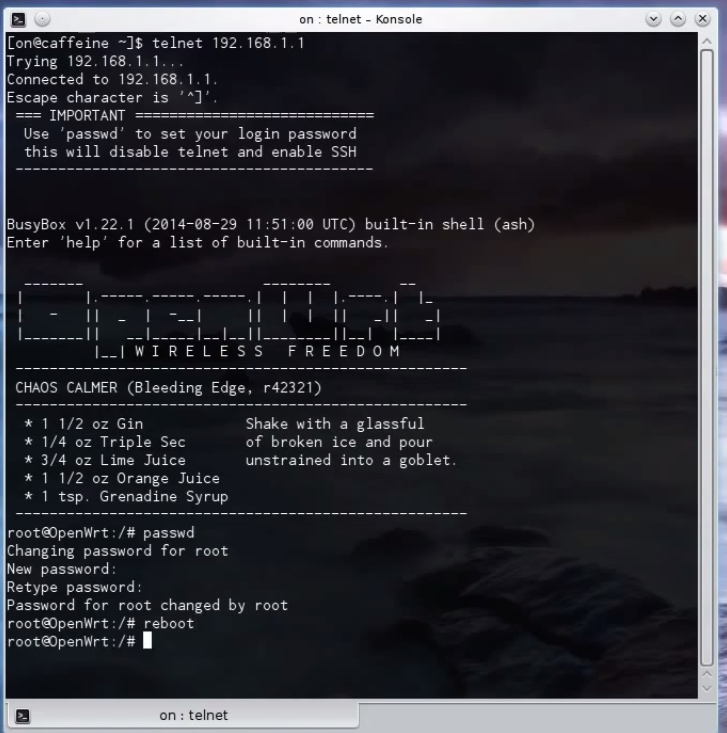

then set password for router access using

passwd

52



then exit the router using command ‘exit’. To get access of router after this you’ll have to use

ssh root@192.168.1.1

Now following two steps are specific to OpenFlow 1.0 to avoid slicing error.                                 1) Copy functions.sh from lib to etc [25].

 # cp /lib/functions.sh /etc

2) Add –no-slicing parameter to /lib/openflow/ofswitch.sh [26]. After the addition of this parameter, the modified lines should look as follows.

if [[ "$mode" == "inband" ]]
then
	echo "Configuring OpenFlow switch for inband control"
[ -n "$dpid" ] && {
ofdatapath punix:/var/run/dp0.sock -i "$dpports" --no-slicing
--local-port=tap:tap0 "--pidfile=$pidfile" -d "$dpid" &
	}||{
ofdatapath punix:/var/run/dp0.sock -i "$dpports" --no-slicing
--local-port=tap:tap0 "--pidfile=$pidfile" &
}
else
	echo "Configuring OpenFlow switch for out-of-band control"
[ -n "$dpid" ] && {
ofdatapath punix:/var/run/dp0.sock -i "$dpports" --no-slicing
--no-local-port "--pidfile=$pidfile" -d "$dpid" &
	}||{
ofdatapath punix:/var/run/dp0.sock -i "$dpports" --no-slicing
--no-local-port "--pidfile=$pidfile" &
}





To set configuration of router

1.Edit the openflow file

vi  /etc/config/openflow

enter ip address of raspberry pi instead of 192.168.0.2


config 'ofswitch'
        option 'dp' 'dp0'
        option 'dpid' '000000000009'
        option 'ofports' 'eth1 wlan0 wlan0-1 wlan0-2'
        option 'ofctl' 'tcp:192.168.0.2:6633'
        option 'mode'  'outofband'

2. Edit the network configuration file

vi  /etc/config/network



config  interface 'loopback'
    option ifname 'lo'
    option proto 'static'
    option ipaddr '127.0.0.1'
    option netmask '255.0.0.0'

config interface 'lan'
    option ifname 'eth0.1'
    option proto 'static'
    option type 'bridge'
    option ipaddr '192.168.0.1'
    option netmask '255.255.255.0'

config interface 'wifi'
    option proto 'static'

config interface 'lan2'
     option ifname 'eth0.2'
     option proto 'static'

config interface 'lan3'
     option ifname 'eth0.3'
     option proto 'static'

config interface 'lan4'
    option ifname 'eth0.4'
    option proto 'static'

config interface 'wan'
    option ifname 'eth1'
    option proto 'dhcp'

config switch
    option name 'eth0'
    option reset '1'
    option enable_vlan '1'


config switch_vlan
    option device 'eth0'
    option vlan '1'
    option ports '1 0t'
                                                                  config switch_vlan
    option device 'eth0'
    option vlan '2'
    option ports '2 0t'
                                                                 config switch_vlan
    option device 'eth0'
    option vlan '3'
    option ports '3 0t'

config switch_vlan
    option device 'eth0'
    option vlan '4'
    option ports '4 0t'


3.Edit the wireless configuration

vi  /etc/config/wireless




config wifi-device  radio0
	option type     mac80211
	option channel  11
	option hwmode	11g
	option path	'platform/qca953x_wmac'
	option htmode	HT20
	option disabled 0

config wifi-iface wlan0
	option device   radio0
	option network  wifi
	option mode     ap
	option ssid     OpenWrtOne
	option encryption none


config wifi-iface wlan2
       option device   radio0
       option network  wifi
        option mode     ap
        option ssid     OpenWrtTwo
        option encryption none

config wifi-iface wlan3
        option device   radio0
        option network  wifi
        option mode     ap
        option ssid     OpenWrtThree
        option encryption none

config wifi-iface wlan5
        option device   radio0
        option network  lan
        option mode     ap
	option ssid OpenWrtXS
	option encryption psk2
        option key  openwrtxs
